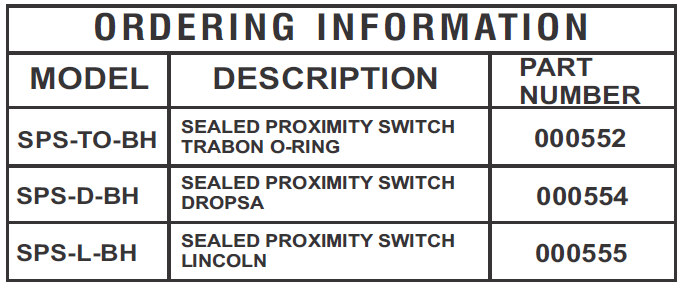

Model SPS-X-BH - Part# 0005XX
HIGHLY VISIBLE
STAINLESS STEEL HOUSING
FLUID or GREASE SYSTEMS
LEFT or RIGHT MOUNTING
TOTALLY SEALED
EASY TO INSTALL
ANY SIZE DIVIDER BLOCK SECTION

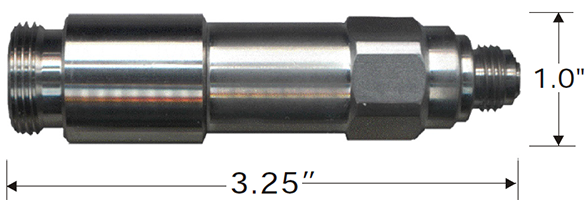

DESCRIPTION
The SPS (Sealed Proximity Switch) is a totally
sealed monitoring device that will accurately
monitor fluid or grease lubrication systems. It is
manufactured using a custom machined stainless
steel housing and a powerful internal magnet
assembly built for industrial use. It is easy to install
and can be installed on any section on either side of
a divider block.
INSTALLATION PROCEDURE

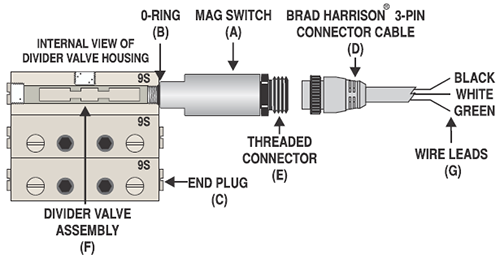

1. Remove end plug (D) from divider valve
where proximity switch will be installed.
Proximity switch can be installed on any
available divider valve section on either side of
divider block.
2. Screw proximity switch (A) into end of divider
valve. Torque to 15 foot pounds max. Be sure
0-ring or metal gasket (C) is in place on
proximity switch if required.
3. Use 10 to 12 inches of flexible conduit on the
switch housing for ease of installation/removal
or maintenance. All conduit and connections
should be appropriate for area classification.

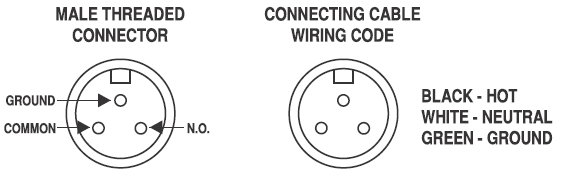

4. To test proximity switch for contact closure,
connect ohmmeter to yellow leads and cycle
divider valve assembly back and forth. This
can be achieved with the compressor running
or by manually pumping oil through the divider
valve assembly with a hand priming pump.
