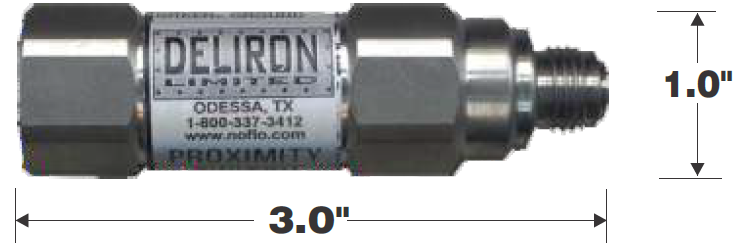

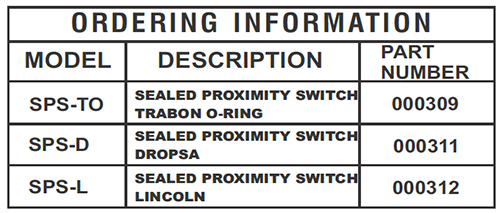

SEALED PROXIMITY SWITCH Model SPS-X Part# 0003XX

HIGHLY VISIBLE

STAINLESS STEEL HOUSING

FLUID or GREASE SYSTEMS

LEFT or RIGHT MOUNTING

TOTALLY SEALED

EASY TO INSTALL

ANY SIZE DIVIDER BLOCK SECTION



DESCRIPTION

The SPS (Sealed Proximity Switch) is a totally sealed monitoring device that will accurately monitor fluid or grease lubrication systems. The SPS is manufactured using a custom machined stainless steel housing and a powerful internal magnet assembly built for industrial use. The SPS is easy to install and can be installed on any section on either side of a divider block.

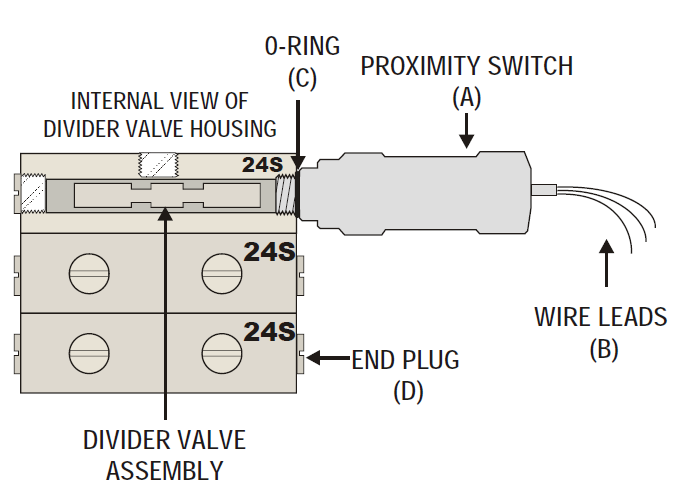

INSTALLATION PROCEDURE

1. Remove end plug (D) from divider valve where proximity switch will be installed. Proximity switch can be installed on any available divider valve section on either side of divider block.
2. Screw proximity switch (A) into end of divider valve. Torque to 15 foot pounds max. Be sure 0-ring or metal gasket (C) is in place on proximity switch if required.
3. Use 10 to 12 inches of flexible conduit on the switch housing for ease of installation/removal or maintenance. All conduit and connections should be appropriate for area classification.
4. To test proximity switch for contact closure, connect ohmmeter to yellow leads and cycle divider valve assembly back and forth. This can be achieved with the compressor running or by manually pumping oil through the divider valve assembly with a hand priming pump.





SPECIFICATIONS

Material.................................................Stainless Steel
Temperature Range..............................-40 °C to +80 °C
Switch Rating........................................10 VA /240 VDC
Epoxy Encapsulted................................UL LISTED EL-CAST VFR 641


RATINGS





WIRING

YELLOW = PROXIMITY SWITCH
GREEN = GROUND
